Modular Mega Fuse Holder
$18.01
The MEGA fuse holder is available for systems up to 32 volts DC, rating current max is 500A and accepts 5/16″ (M8) terminal stud sizes.
Interlocking pins on the sides of the fuse holder let you connect additional MEGA fuse holders to create a multi-fuse block.
33 in stock
For delivery outside of main centres, please contact us for a quote.
- Product Size

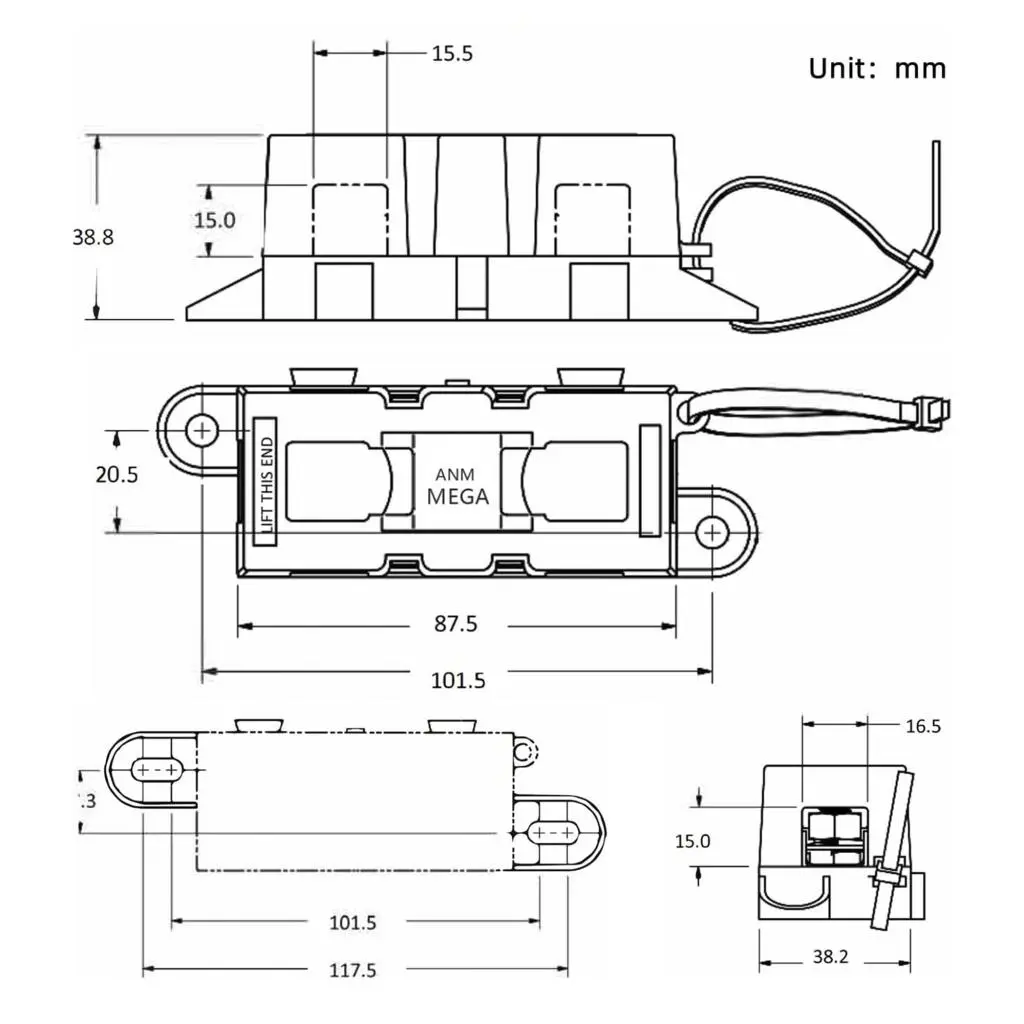

The dimensions of the fuse holder are 126*37.5*43.5 mm (L*W*H), with a spacing of 51 mm between the two holes, and is suitable for connecting 5/16″ (M8) ring terminals.
- High Quality
This fuse box is made of high-quality rubber and metal and is strong, durable, flame retardant, and heat resistant.
- Protective Cover

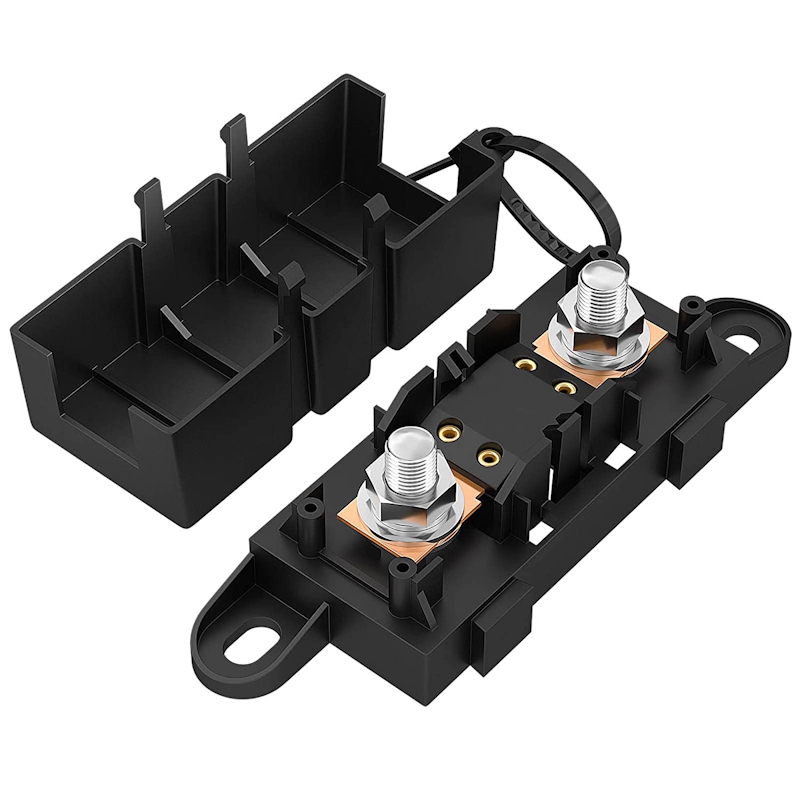

This automotive fuse box comes with a protective cover.
- Widely Application
It is suitable for ANM (MEGA) fuses, which are widely used in automotive electronics, household appliances, medical electronics, industrial equipment, lighting fixtures, and communication equipment.
- Max Current Rating 500A
- Fuse Type - Mega
- Ingress Protection- Dust
- Input and output Terminals - M8 Stud
- M6 Mounting holes
Additional information
| Weight | 0.030000 kg |
|---|
