Sale!
Busbar 250A 4 Stud + Cover
- Insulation cover
- Tin-plated copper bus allowing a large current of 250A
- Stainless steel screws and studs provide good anti-corrosion protection
- Upgraded design with Serrated Flange Nuts encourages correct installation of ring terminals and an improved electrical connection
- Rounded Busbar ends allow for end connection to be at any angle
$98.23
In stock (can be backordered)
- Max Current 250A
- Max Voltage 48VDC
- Terminal Diameter 5/16 inch / 7.95 mm
- Terminal Material Stainless Steel
- Recommeded Torque 7 Nm
- Busbar material Tin plated Copper
- Base Material – ABS
- Cover material – Clear Polycarbonate
- Weight – 200g

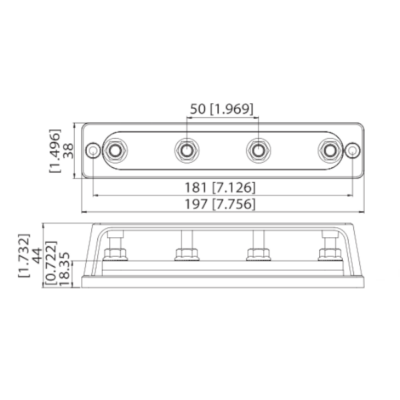

- Dimensions 44mm H x 197mm L x 38mm W
- Rounded bus edge for more flexible wiring
- Single flanged nuts
- Interrupting Capacity (AIC) | 3,000A @ DC 48V
- Voltage Rating | DC 48V Max
- Current Rating | DC 250A
- Terminal Studs | 5/16”
