Battery Switch 275A
$57.37

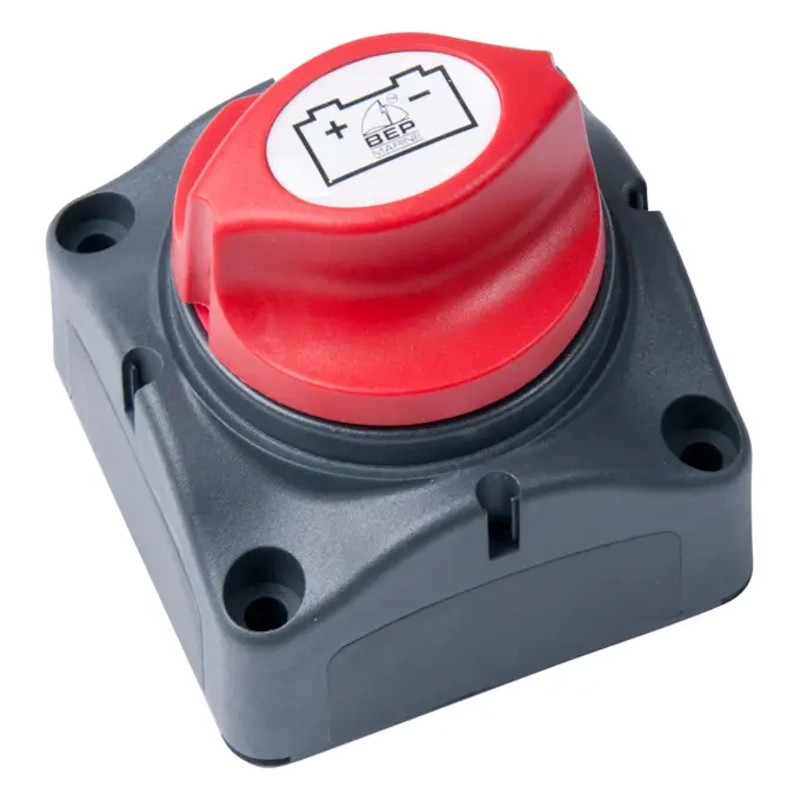

Battery Switch 275A
This compact, high-performance battery switch features a removable control knob for added security when in the off position. Designed for versatility, it includes three removable side plates for easy cable access, an insulated rear cover to prevent short circuits, and interchangeable labels to suit various applications. Rated for 275A continuous and 1250A cranking at up to 48V DC, it’s built with tin-plated copper studs and is ignition protected. Suitable for surface or recessed mounting (52mm cut-out).
Only 2 left in stock
FREE URBAN SHIPPING on all batteries under 25kg .
For delivery outside of main centres, please contact us for a quote.
BEP Battery Switch 275A
Specifications
- Removable control knob that can be removed when battery is in off position
- Rear insulated cover to prevent short circuiting of rear terminals
- Three removable side plates for easy cable access
- Interchangeable labels on control knobs to suit a full range of applications
- Continuous Rating: 275 Amps DC
- Intermittent Rating: 455 Amps DC
- Cranking Rating : 1250 Amps
- DC Voltage Rating: 48 Volts DC
- Tin plated copper studs and nuts
- Mounting: Surface mounted but can be recessed by cutting 52mm hole
- Ignition protected
- Termination Stud Size: 2 x 10 mm
- Dimensions (H x L x W) : 75 x 69 x 69mm
